Description
| Processor | Up to two 3rd Generation Intel® Xeon® Scalable processors with up to 32 cores per processor |
|---|---|
| Operating System | Canonical® Ubuntu® Server LTS Citrix® Hypervisor® Microsoft® Windows Server® with Hyper-V RedHat® Enterprise Linux SUSE® Linux Enterprise Server VMware® ESXi® |
| Chipset | Intel C620 series chipset |
| Accelerators | Up to two double wide 300 W NVIDIA A40 or five single wide 70 W NVIDIA T4 accelerators |
| Memoryi | |
| DIMM Speed | Up to 3200 MT/s |
| Memory Type | RDIMM |
| Memory Module Slots | 16 DDR4 DIMM slots |
| Maximum RAM | RDIMM 1 TB |
| Storage | |
| Front Bays | Up to 8 x 2.5-inch SAS/SATA (HDD) max 120 TB Up to 16 x 2.5-inch SAS/SATA (HDD) max 240 TB Up to 24 x 2.5-inch SAS/SATA (HDD) max 360 TB Up to 8 x 3.5-inch SAS/SATA (HDD/SAS) max 120 TB Up to 8 x 3.5-inch SAS/SATA (HDD) + 8 x 2.5-inch NVMe (SSD) max 240 TB |
| Storage Controllers | |
| Internal Controllers | PERC H345, PERC H755, PERC H755N, HBA355i |
| External Controllers | PERC H840, HBA355e |
| Software RAID | S150 |
| Internal Boot | Boot Optimized Storage Subsystem (BOSS-S2): HWRAID 2 x M.2 SSDs 240 GB or 480 GB Internal Dual SD Module or Internal USB |
| Security | |
| Cryptographically signed firmware Secure Boot Secure Erase Silicon Root of Trust System Lockdown (requires iDRAC9 Enterprise or Datacenter) TPM 1.2/2.0 FIPS, CC-TCG certified, TPM 2.0 China NationZ |
|
| Management | |
| Embedded / At-the-Server | iDRAC9 iDRAC Service Module iDRAC Direct Quick Sync 2 wireless module |
| Consoles | OpenManage Enterprise OpenManage Power Manager plugin OpenManage SupportAssist plugin OpenManage Update Manager plugin |
| Mobility | OpenManage Mobile |
| Tools | iDRAC RESTful API with Redfish IPMI RACADM CLI System Update Utility Update Catalogs |
| OpenManage Integrations | BMC® Truesight Microsoft® System Center RedHat® Ansible® Modules VMware® vCenter and vRealize Operations Manager |
| OpenManage connections | IBM Tivoli® Netcool/OMNIbus IBM Tivoli® Network Manager IP Edition Micro Focus® Operations Manager Nagios® Core Nagios® XI |
| Power Supplies | |
| 600W Platinum 100–240 VAC or 240 HVDC, hot swap redundant 800W Platinum 100–240 VAC or 240 HVDC, hot swap redundant 1100W Titanium 100–240 VAC or 240 HVDC or -48 V, hot swap redundant 1400W Platinum 100–240 VAC or 240 HVDC, hot swap redundant 2400W Platinum 100–240 VAC or 240 HVDC, hot swap redundant Hot swap power supplies with full redundancy option Up to 8 fans with full redundancy |
|
| Ports | |
| Network Options | 2 x 1GbE LOM and OCP x16 Mezz 3.0 (optional) |
| Front Ports | 1 x Dedicated iDRAC Direct micro-USB (optional) 1 x USB 2.0 1 x USB 3.0 |

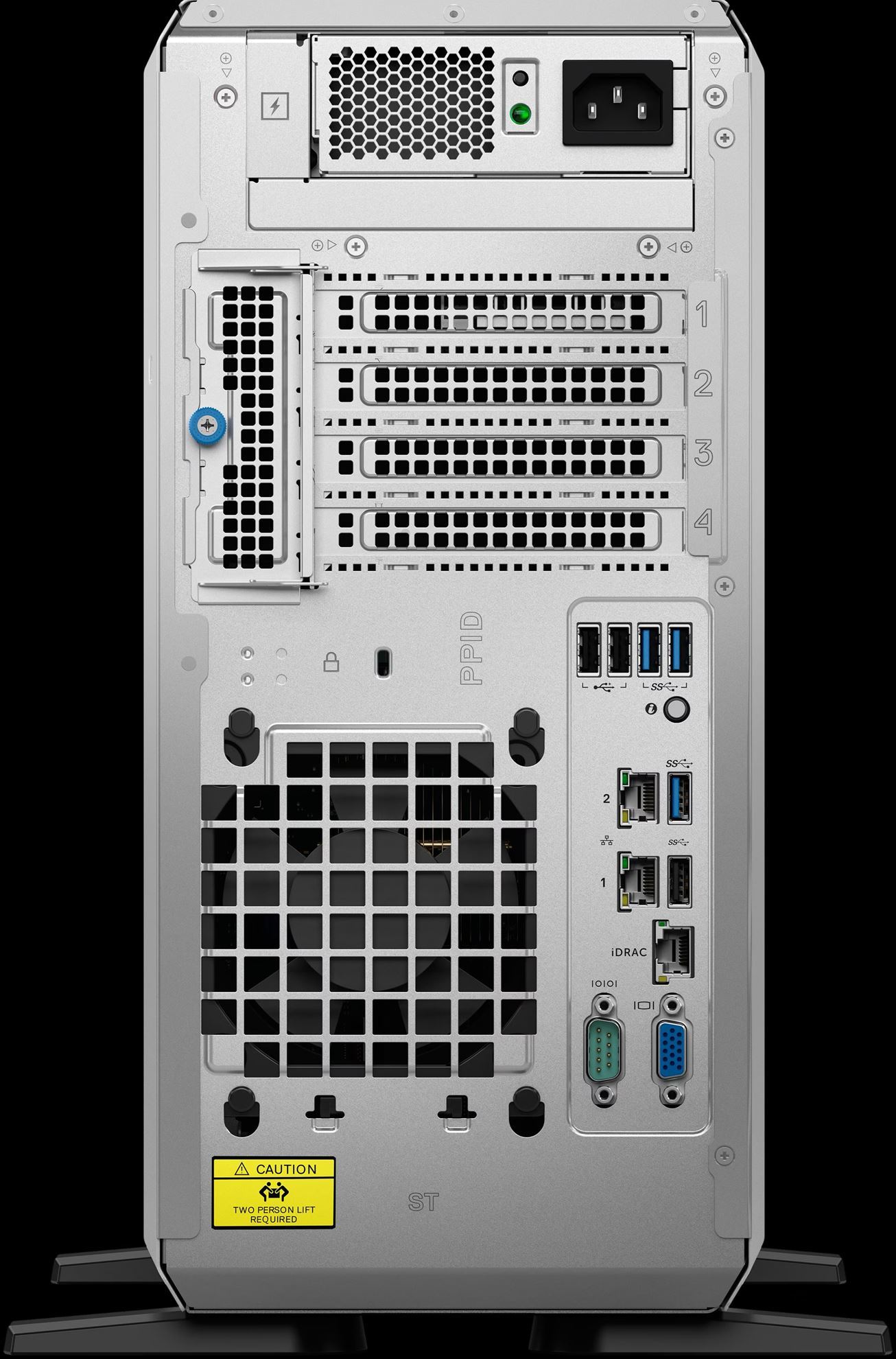

| Rear Ports | 1 x USB 2.0 1 x iDRAC Direct (Micro-AB USB) port 1 x USB 3.0 1 x Serial (optional) 2 x Ethernet 1 x VGA |
| Internal Ports | 1 x USB 3.0 (optional) |
| Slots | |
| PCIe | 5 x PCIe Gen4 slots + 1 x PCIe Gen3 slot 3 x 16 Gen4 (x16 connector) full height, half length 1 x 4 Gen3 (x8 connector) full height, half length 2 x 16 Gen4 (x16 connector) full height, full length (optional) |
| Video Card | 1 x VGA |
| Chassis | Up to 8 fans with full redundancy |
| Bezel | Optional LCD bezel or security bezel |
| Form Factor | 5U Tower server |
| Dimensions & Weight | |
| Height | 459.00 mm (18.07 in.) |
| Width | 200.00 mm (7.87 in.) |
| Depth | 680.50 mm (26.79 in.) with bezel 663.50 mm (26.12 in.) without bezel |
| Weight | Max 44.48 kg (98.06 lbs.)i |
| Rack Support | System is optimized to fit into EIA-310 spec Racks. Dell does not offer specific rails for this platform. |
| Recommended Support | Choose Dell ProSupport Plus for critical systems or Dell ProSupport for premium hardware and software support for your PowerEdge solution. Consulting and deployment offerings are also available. Contact your Dell representative today for more information. Availability and terms of Dell Services vary by region. |
| Regulatory | |
| Product Safety and Environmental Datasheets Dell Regulatory Compliance Home Page Dell and the Environment |
|
